Physical Background

Physical Background

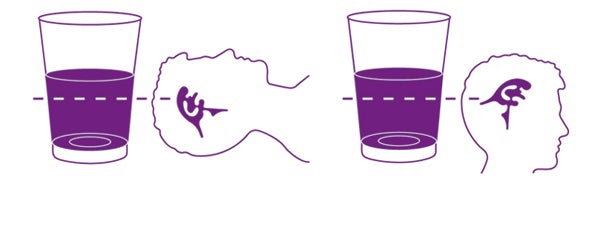

Healthy individuals possess a positive (slightly above 0 mmHg) ventricular pressure in the horizontal position. In the upright position the ventricular pressure is negative (slightly below 0 mmHg).

Physical Background

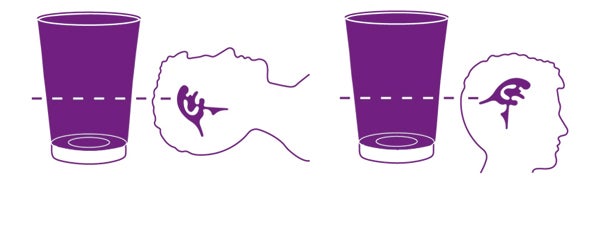

When hydrocephalus is present the ventricular pressure is usually increased regardless of the body position.

Physical Background

Due to enlarged ventricles the intracranial pressure is getting too high. To implant a shunt system is a common procedure to treat patients suffering from hydrocephalus and to control the intracranial pressure within the physiological range.

There are different types of shunt systems available:

  • Shunts with fixed pressure settings, so-called differential-pressure (DP) valves
  • Shunts with adjustable pressure settings (Adjustable DP valves)
  • Hydrostatic or Gravitational valves
Physical Background

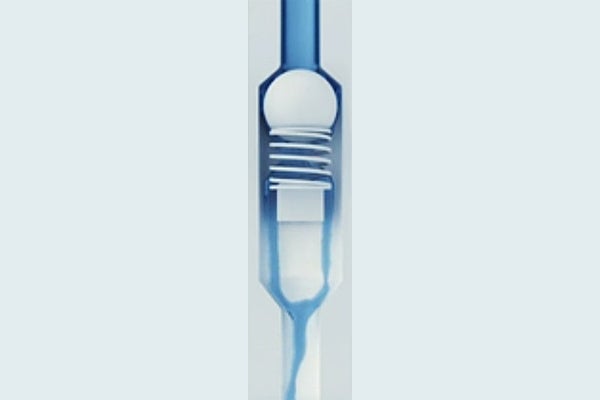

Normal DP valves offer one pressure at a time. Adjustable DP valves offer various pressure settings which can be adjusted with the mean of a magnetic field. Gravitational valves automatically vary their pressure setting depending on the patients body position.

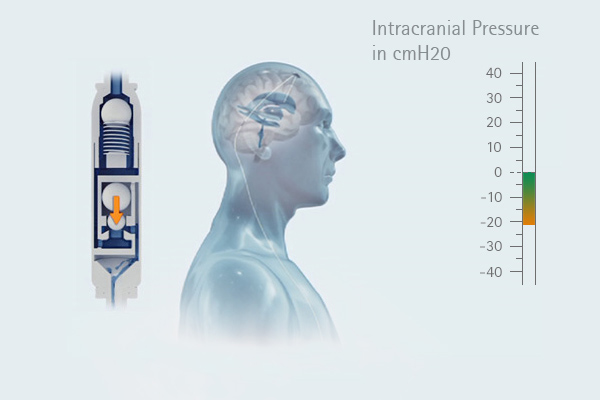

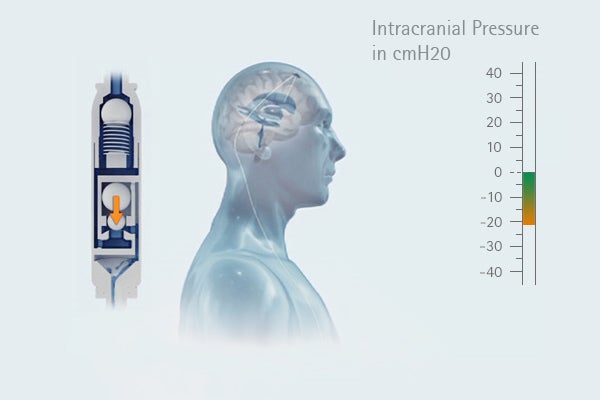

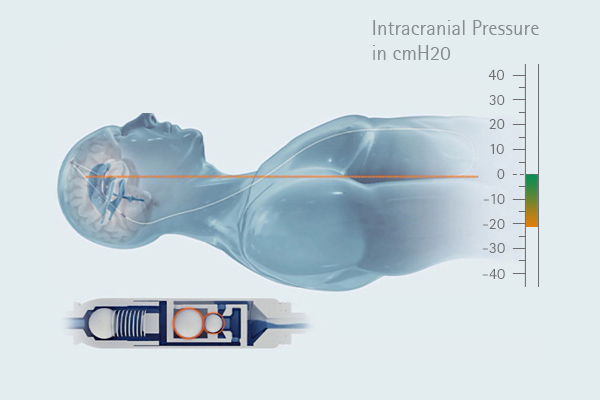

In the supine position a hydrocephalus shunt opens (and thus allow the CSF to flow) when the pressure in the brain reaches the opening pressure of the valve. Due to gravity, there is an additional force acting on the valve when the patient is in upright position. This gravitational or hydrostatic force can lead to an increased outflow of the CSF and a too negative brain pressure.

Physical Background

This effect – often called “siphoning” or “overdrainage” – is individual from patient to patient and dependent on the patient size and abdominal pressure. Overdrainage can lead to complications like headache, nausea, dizziness and even severe brain damages.

To find the right pressure setting for the individual need of the patient is often a big challenge for a surgeon.

Gravitational shunt systems offer a sustainable protection against overdrainage complications. The combination of gravity control and adjustability allow for very a flexible and individual adjustment for every individual patient situation.
