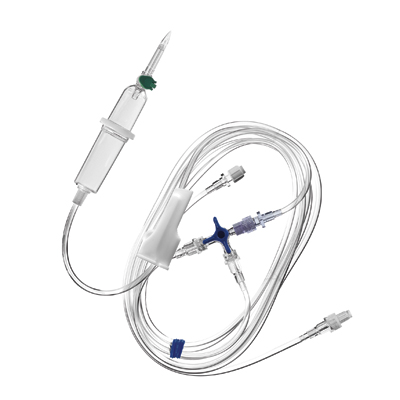

Medifix® Infusion System

Infusion system for measurement of the Central Venous Pressure (CVP)

CVP monitoring with a Medifix® infusion system - a low cost and easy-to-handle device specifically for intensive care to provide information about the filling status of the venous circulatory system and to obtain diagnostic and therapeutic information.


Modular elements of the Medifix® CVP measurement system are:

  • Complete with Intrafix® Primeline IV administration set (optionally also without IV administration set). No time consuming assembly of single components, no risk of touch contamination
  • Closed manometer tubing. Soft, clear PVC tubing with standard lumen 3 x 4.1 mm, DEHP free plasticizer with well documented safety properties (PVC material), short length 100 cm, long length 175 cm. Bacteria-tight venting, hydrophobic properties
  • Discofix® 3-way-stopcock, always turned in a clockwise direction in order to prevent a wrong setting
  • Extension line PVC, 3 x 4.1 mm, 80 cm (optionally 145 cm)
  • Pressure resistant max. 400 mm Hg (0,5 bar)
  • Medifix® manometer scale
    • Clear graduation from +35 cm H20 to -15 cm H2O
    • Accurate reading of venous pressure due to magnifying effect
    • Zero-position pointer movable to right or left position. Usable on both sides of the bed
    • Rigid manometer scale unbreakable, reusable
    • With two universal fixation clamps. Manometer scale and tubing are easy to fix on IV stand
