Tear-Away Introducers
Split introducer kits for percutaneous catheter insertion using the Seldinger technique

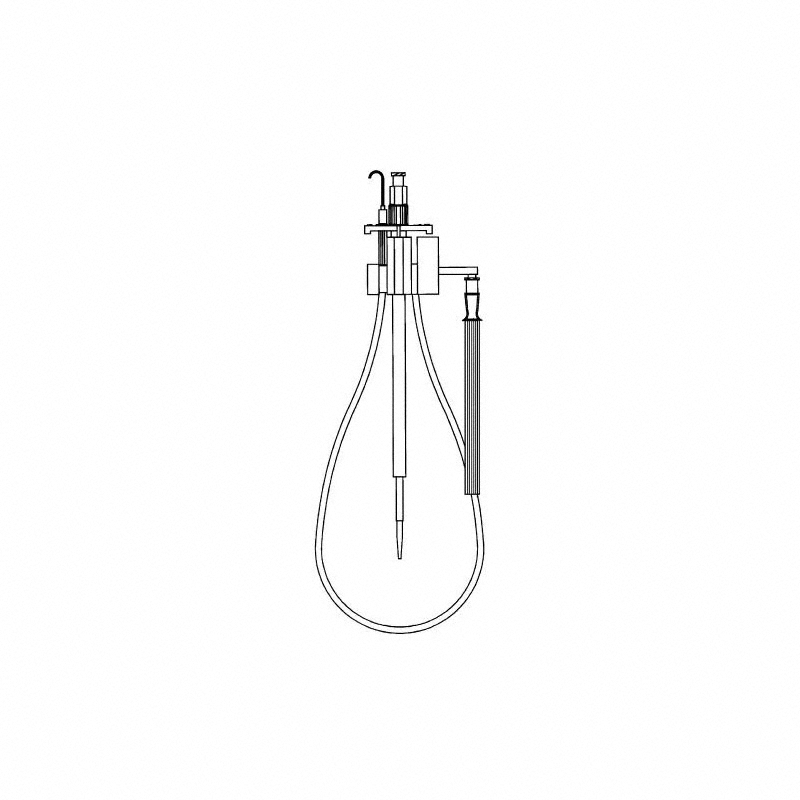

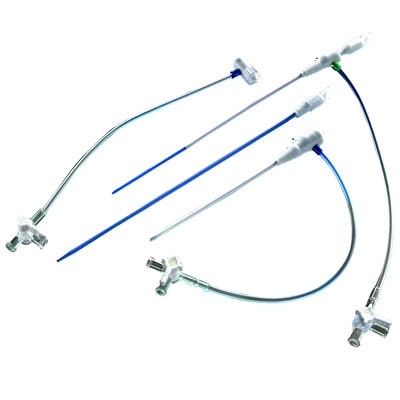

Intradyn Tear-Away
Puncture needle, 1.3 × 70 mm (18 G)
- Stainless steel
Guide wire, 45 cm, 0.035″ / 0.89 mm
- Stainless steel
- Flexible J-tip
Dilator, 178 mm, made of PE
- Tapered transition to guide wire
Introducer sheath, 140 mm, made of FEP
- Thin-walled
- Tapered transition to vessel dilator
- Luer-Lock connector
Advantages
A perforated shaft enables clean and easy removal of the introducer set after catheter placement. The spin-lock connector fixes the dilator and sheath and prevents the dilator from loosening during the vascular access.
- Sheath - stepless transition to the vascular dilator
- Dilator - very flexible, gentle on the blood vessels
- Guide wire - made of stainless steel, flexible J3 tip
- Needle - stepless approach for easy insertion of the guide wire
